by

Photo Update

NScaleLayout Grampy

Updated Plan – Added a spur for a future train station

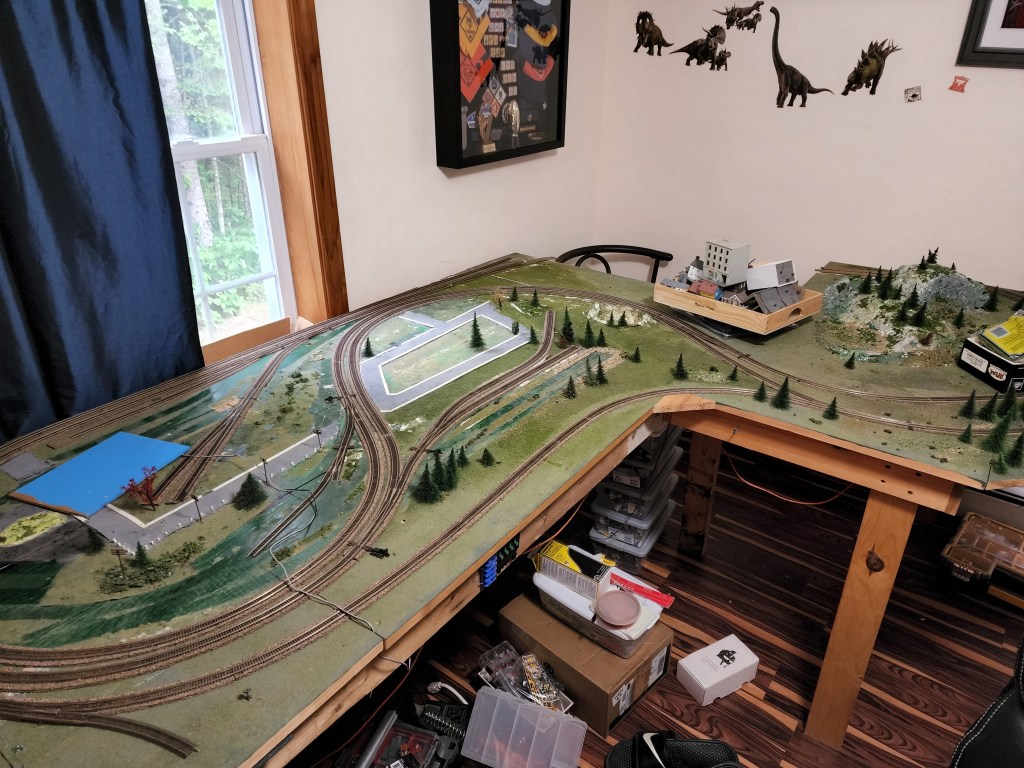

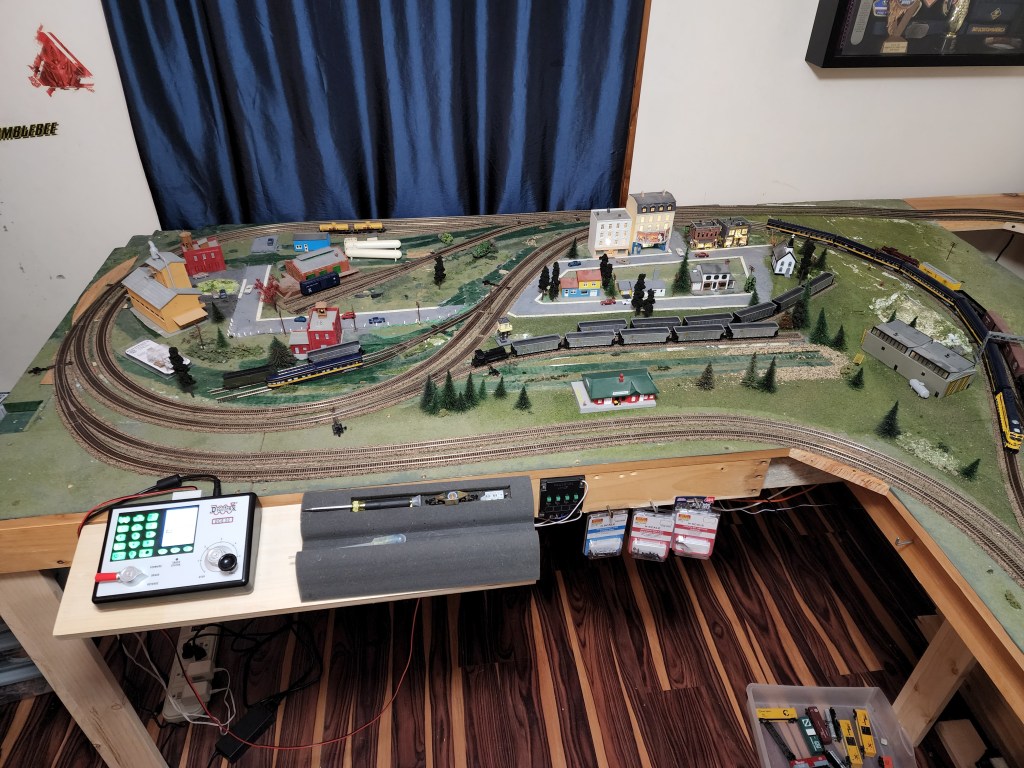

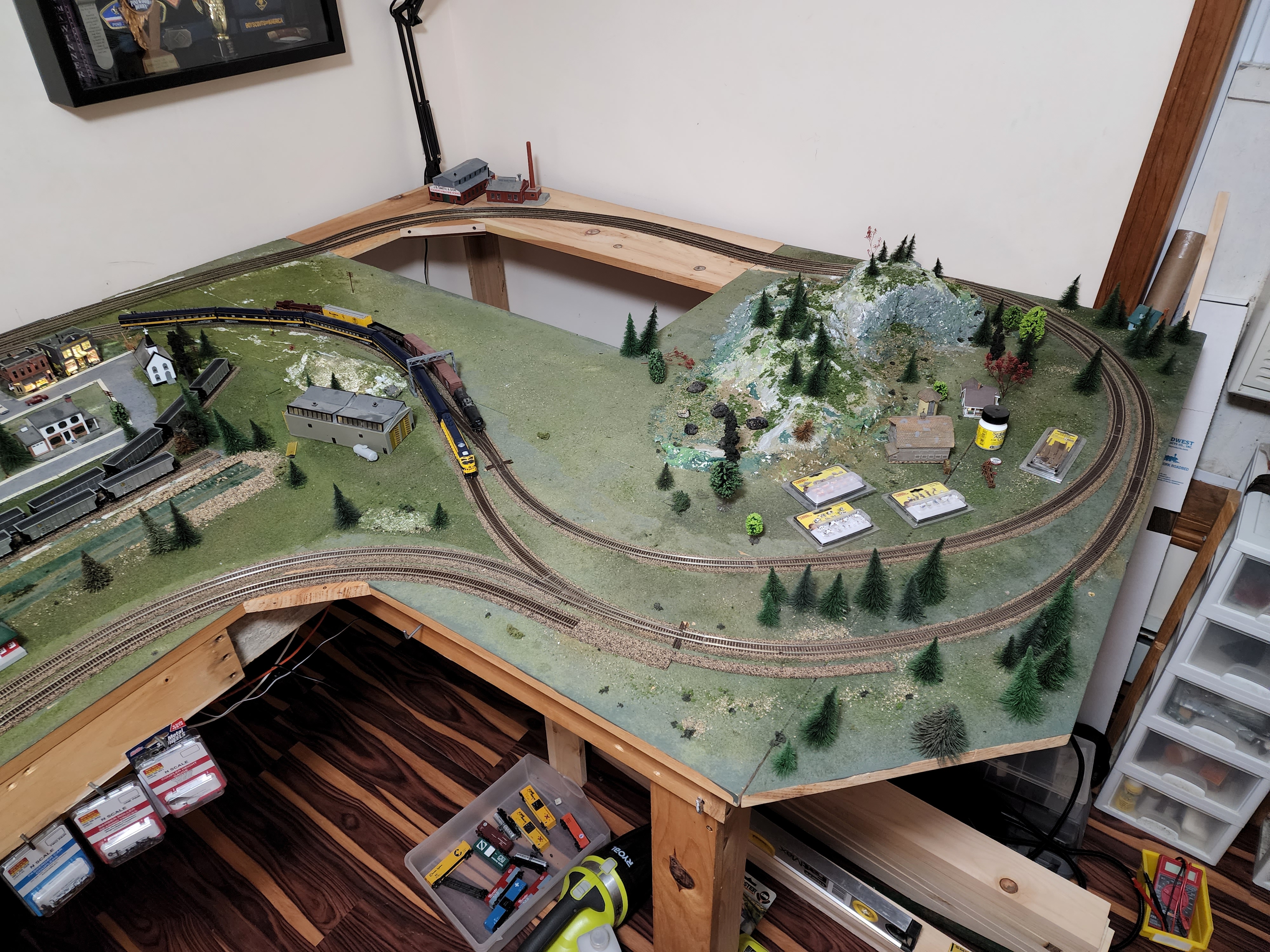

Here are some photos from this past weekend.  My focus has been on laying track so the scenery needs a lot of work.  I have a few more switches to wire up then I may begin filling in scenery.

I really like working with the curved turnouts, they add a lot of flexibility to my industry options.  I find that using a curved turnout at the exit end of a curve allots the industry to be larger because space isn’t wasted by turnouts after curves.

Advertisements
by

All Aboard the Alaska Railroad

Sherry Ott, a freelance photographer, has some tips for taking photographs from trains.  Check out the blog post here.





by

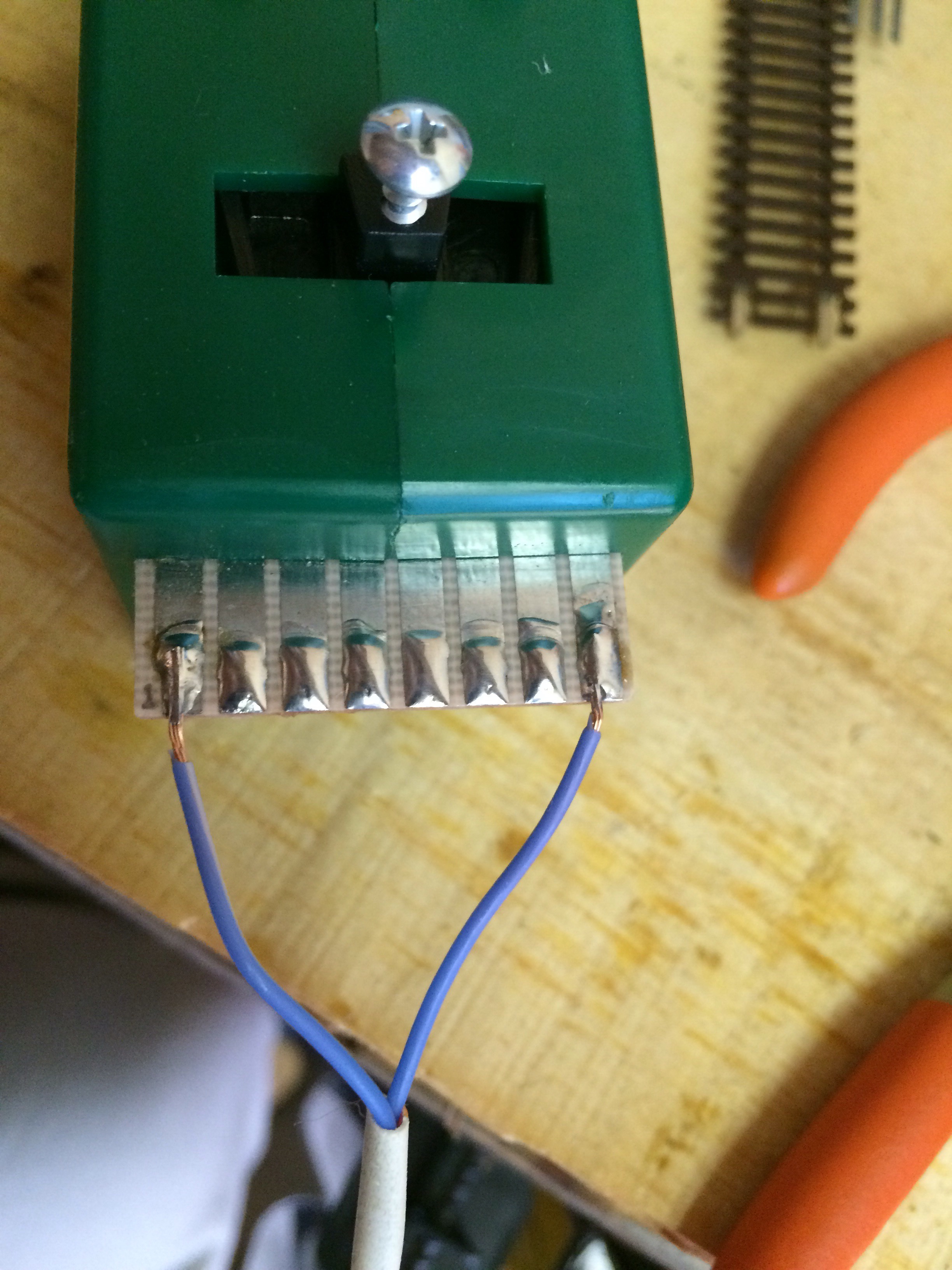

Well Laid Solder

Doing some wiring on the railroad today. I’ll attach the frog wires once the switch machine is in place.



by

A “container-boose”?

The Alaska Railroad has, in typical Alaskan ingenuity fashion, fabricated what appears to be a transfer car made out of a shipping container.  These special cabooses are used in transfer service between yards or on short switching runs.  As such, they lack amenities such as a bathroom and cooking or sleeping spaces.  The ends of the car are left open and will include railings and chains to protect the rail-workers.

ARR%20Caboose

Source



by

Front-End-Friday

It’s a day late, I know, but here’s a couple photos of my newest engine:

This GP-38 will be used for light duty freight: a few box cars, a reefer, an open hopper, a couple tankers, log+lumber etc.  I bought this Atlas engine on e-bay.  It came with DCC+Sound and cost me $94, including shipping from Alaska.

by

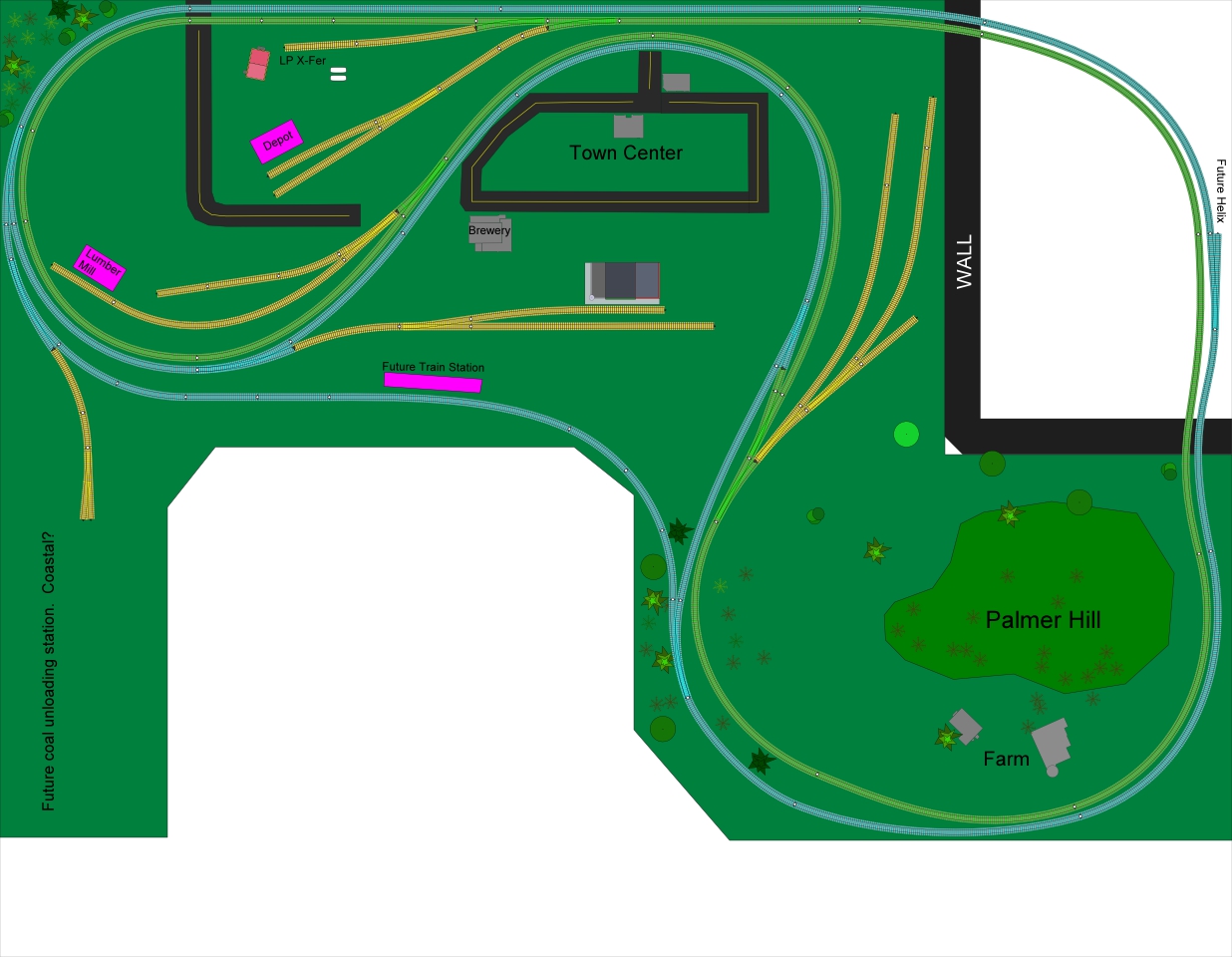

Track Plan

Here is a look at my track plan.  It consists of two outer loops and various sidings for industries.  The spur on the left will be expanded down to a coal unloading dock on the coast.  Industries in the center will include a sawmill where logs will be dropped off and lumber will be picked up, a liquefied propane unloading station and various shipping depots.  In the upper right corner, the cut out shows the two loops traversing a mountain via a tunnel.  There is a spare switch in the mountain for a potential helix.  This helix may eventually lead to a future upper deck where passenger service will be managed.  The layout is currently in one corner of my home office, there is a lot of potential for expansion.

NScaleLayout Grampy
